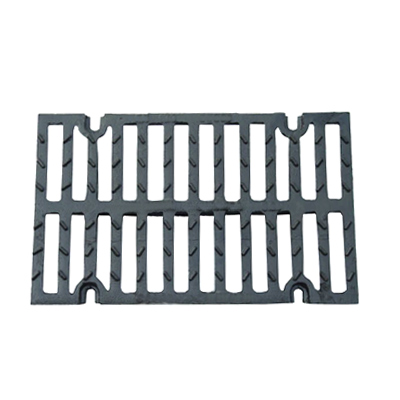

Ductile Cast Iron Gully Grating

Shelf time:
2024-05-14
Power:
Torque:
Torque Characteristic:
Description:
Ductile iron gully grating is made from spherical graphite cast iron (ductile iron) by machine moulding or hand moulding, flat top, without hinge. Very good quality, smooth and free from sand holes, blow holes, distortion or any other defects. Loading capacity is 40 tons.Clear opening size is 380X38
Equipment Quotation Troubleshooting

PRODUCTS

Hot products

Tel:+86 19932228222 (Whatsapp/Wechat)

E-mail:zwzfactory@163.com

Product details description

Ductile iron gully grating is made from spherical graphite cast iron (ductile iron) by machine moulding or hand moulding, flat top, without hinge. Very good quality, smooth and free from sand holes, blow holes, distortion or any other defects. Loading capacity is 40 tons.

Clear opening size is 380X380/420X420/430X430/480X480/570X570mm.The normal coating is black bitumen 50 microns thickness, also can make the epoxy coating according to the customer’s demand.


C250 Class (< 250 KN or 25MT) Specifications

Flat Top Seriesgully

Ductile Iron

Flat Top

Hinge Type

Dish-Shape Top Seriesgully

Ductile Iron

Dish-Shape Top

Hinge Type

V-Shape Top Seriesgully

Ductile Iron

V-shape Top

Hinge Type

Continuous Grating Series

Ductile Iron

Flat Top

Continuous gratings


D400 Class (< 400 KN or 40MT) Specifications

Flat Top Series gully-grating05

Ductile Iron

Flat Top

Without Hinge



E600 Class (< 600 KN or 60MT) Specifications

Flat Top Series gully-grating06

Ductile Iron

Flat Top

Hinge Type

Lockable with screw
